Product Overview

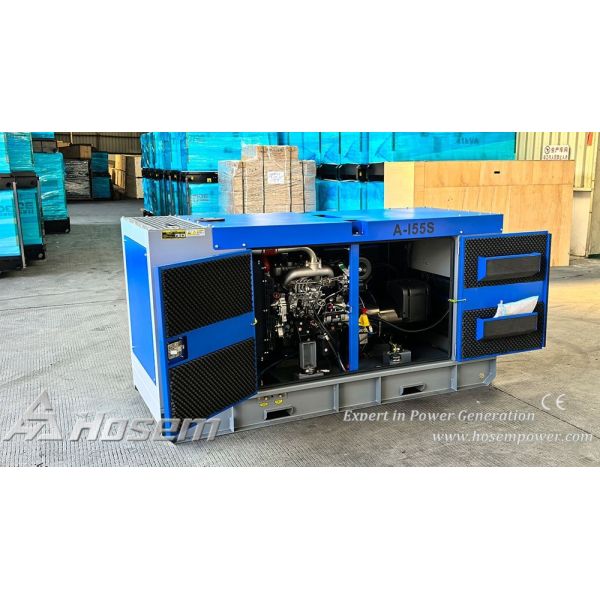

The A-I55S model is a high-performance Isuzu diesel generator designed for durability and efficiency. Featuring the JE493ZLDC-02 engine, this genset offers a robust 3 phase 50kVA Isuzu diesel generator solution for commercial, agricultural, and residential backup.
As a full-service provider, we don't just offer the Isuzu generator; we also ensure long-term reliability by supplying genuine Isuzu generator parts for all maintenance needs.
Key Specifications
| Generator Set Specification |
| Model | A-I55S |
| Max. Power | kVA | 55 |
| kW | 44 |
| Rate Power | kVA | 50 |
| kW | 40 |
| Frequency | Hz | 50 |
| Rate Voltage | V | 400/230 |
| Rate Current | A | 72.2 |
| Fuel Tank Capacity | L | 100 |
| Dimension For Open-type Genset | mm | 1560 X 680 X 1350 |
| Weight For Open-type Genset | kg | 630 |
| Dimension For Soundproof Genset | mm | 2300 X 960 X 1200 |
| Weight For Soundproof Generator | kg | 1150 |
| Noise Level for Soundproof Generator at 7M | dBA | 72 |
| Battery | One of Free Maintenance Battery |
| Engine Specification |
| Engine Manufacturer | Isuzu Engine Co., Ltd. |
| Engine Brand | Isuzu |
| Engine Model | JE493ZLDC-02 |
| No. of Cylinder | 4 Cylinder in line |
| Aspiration | Turbocharged, Aftercooled |
| Governor | Mechanical |
| Engine Max. Output Power | kW | 56 |
| Displacement | L | 2.9 |
| Compression Ratio | 18.2 : 1 |
| Starting Voltage | V | 12 |
| Bore | mm | 93 |
| Stroke | mm | 105 |
| Lubrication Oil Capacity | L | 5.6 |
| Intake Air Flow | M3/Min | N.A. |
| Fuel Consumption at 100% Load | L/H | 13.6 |
| Alternator Specification |
| Alternator Manufacturer | Fuzhou Hosem Power Co., Ltd. |
| Alternator Model | ASF 224 D |
| Alternator Brand | Hosem |
| Rate Output | kVA | 50 |
| Frequency | Hz | 50Hz |
| Altitude | M | ≤1000 |
| Insulation | Class H |
| Phase | 3 Phase |
| Working Temperature without power decrease | ≤40℃ |
| Working Altitude without power decrease | ≤1000m |
| Automatic Voltage Regulation | SX460 |
| Protection Grade | IP23 |
| Alternator for optional | Leroy Somer, Marathon, Mecc Alte and Hosem Brushless alternator for optional |
|
Why Select This Diesel Solution?
-
Fuel Efficiency: The turbocharged JE493ZLDC-02 engine is a "workhorse," consuming only 13.55 L/H at full load, maximising your ROI.
-
Silent Operation: Our soundproof version reduces noise to just 72 dBA, making it ideal for urban environments.
-
Comprehensive Support: We ensure long-term reliability by supplying Isuzu generator parts, ensuring you have access to filters, belts, and gaskets for years to come.
-
Reliable Alternator: The Hosem brushless alternator features Class H insulation and SX460 voltage regulation for stable power delivery.
FAQ
Q1: Where can I find Isuzu generator parts for this specific model?
A1: We provide a complete range of Isuzu generator parts specifically for the JE493ZLDC-02 engine. From routine oil filters to internal engine components, we support your maintenance schedule to ensure maximum uptime.
Q2: What is the runtime of this Isuzu generator on a full tank?
A2: With a 100L fuel tank and a consumption rate of approximately 13.55 L/H at full load, this unit offers over 7 hours of continuous operation before refuelling is required.
Q3: Does this generator include a warranty?
A3: Yes, our Isuzu generator for sale comes with a standard manufacturer's warranty. Because we use high-quality Hosem alternators and Isuzu-tech engines, we guarantee reliable performance under the rated load.
